ENSO CLIVAR metrics - reproducing ENSO characteristics, lifecycle, seasonality, teleconnections#

Overview#

Reproducing ENSO metrics from the [CLIVAR package](https://pcmdi.llnl.gov/pmp-preliminary-results/interactive_plot/portrait_plot/enso_metric/enso_metrics_interactive_portrait_plots_v20231121.html) with dive down plots of ENSO diagnostics including characteristics, lifecycle, seasonality, feedbacks and teleconnections.

Available recipes and diagnostics#

Recipes are stored in esmvaltool/recipes/

  • recipe_enso_climatology1.yml

  • recipe_enso_climatology_level2-3.yml

  • recipe_enso_characteristics.yml

  • recipe_enso_divedown9-10_14-15.yml

  • recipe_enso_divedown11-13.yml

  • recipe_enso_feedback.yml

  • recipe_enso_feedbacknhf.yml

  • recipe_enso_teleconnection.yml

Diagnostics are stored in esmvaltool/diag_scripts/enso_metrics/

  • matrix.py: reads metrics in work_dir from csv file written out in climatology_diagnostic1, use for other groups of metrics

  • climatology_diagnostic1.py: computes basic climatology for level 1 metrics

  • climatology_diagnosticlevel2.py: creates basic climatology level 2 plots

  • climatology_diagnosticlevel3.py: creates basic climatology level 3 plots

  • enso_diag1metrics.py: computes basic ENSO characteristics metrics

  • enso_divedowns/ampseasskew11-13.py: dive down scripts for ENSO amplitude, seasonality and skewness

  • enso_divedowns/durdiver_14-15.py: dive down scripts for ENSO duration and diversity

  • enso_divedowns/lifecycle_10.py: dive down scripts for ENSO lifecycle

  • enso_divedowns/pattern_9.py: dive down scripts for ENSO pattern

  • feedback/feedback_metrics_lvl4.py: feedback level4 plots

  • feedback/feedback_metrics.py: feedback level3 plots

  • feedback/feedback_nhf_lvl3_4.py: feedback NHF level3-4 plots

  • feedback/feedback_nhf_metric.py: feedback NHF metrics

  • teleconnections_metrics.py: computes and plots teleconnections metrics

User settings in recipe#

  1. Script: matrix.py

    Required settings for script

    • diag_metrics: diagnostic name and script name in yml of the diagnostic that computes all the metrics so it can find the csv in the work_dir - eg. diagnostic_metrics/plot_script

Variables#

  • tos (Omon, monthly)

  • areacello (Ofx)

  • pr (Amon, monthly)

  • ts (Amon, monthly)

  • areacella (fx)

  • tauu (Amon, monthly)

  • zos (Omon, monthly)

  • hfns (hfls+hfss, Amon, monthly)

Observations and reformat scripts#

  • HadISST

  • TropFLUX

  • GPCP-SG

  • ERA-Interim

References#

Example plots#

../_images/ACCESS-ESM1-5_DJF_ts_telecon.png

Fig. 368 PR or SST anomalies on Earth (between 60°S-60°N), showing the location associated with ENSO.#

../_images/ACCESS-ESM1-5_12seasonality_level_4.png

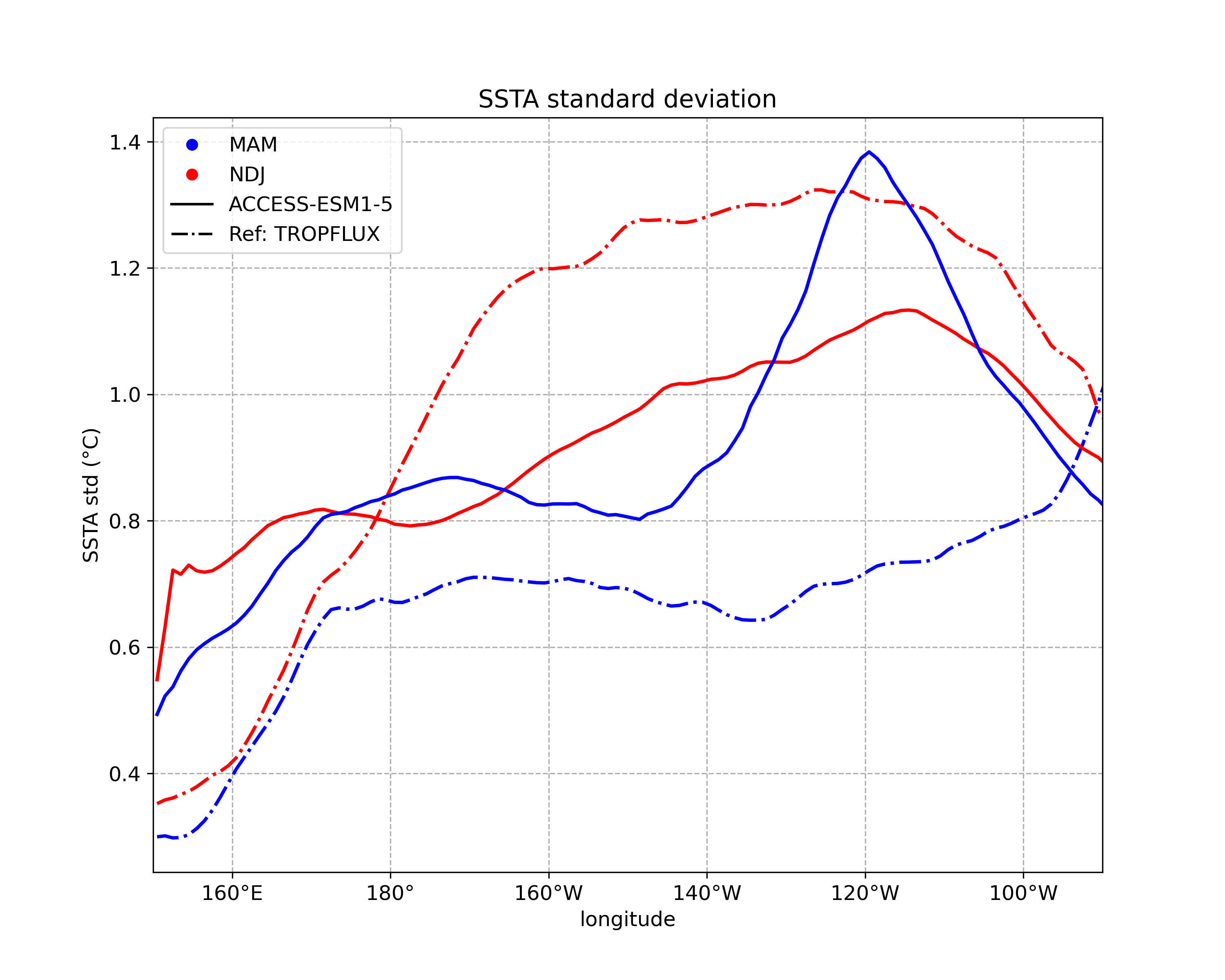

Fig. 369 Seasonality level 4 plot of boreal summer/winter SSTA standard deviation.#

../_images/ACCESS-ESM1-5_SSH_SST_lvl2.png

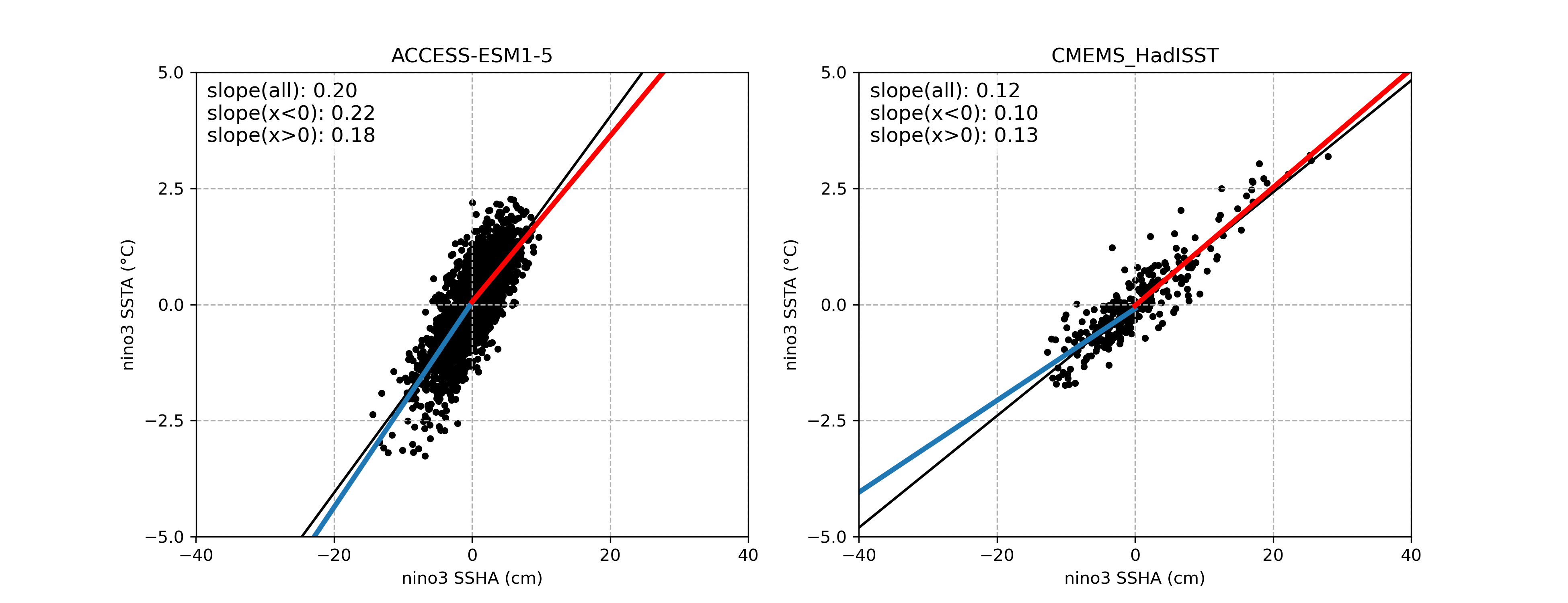

Fig. 370 Feedback level 2 plot of SSH and SST anomalies.#

../_images/plot_matrix.png

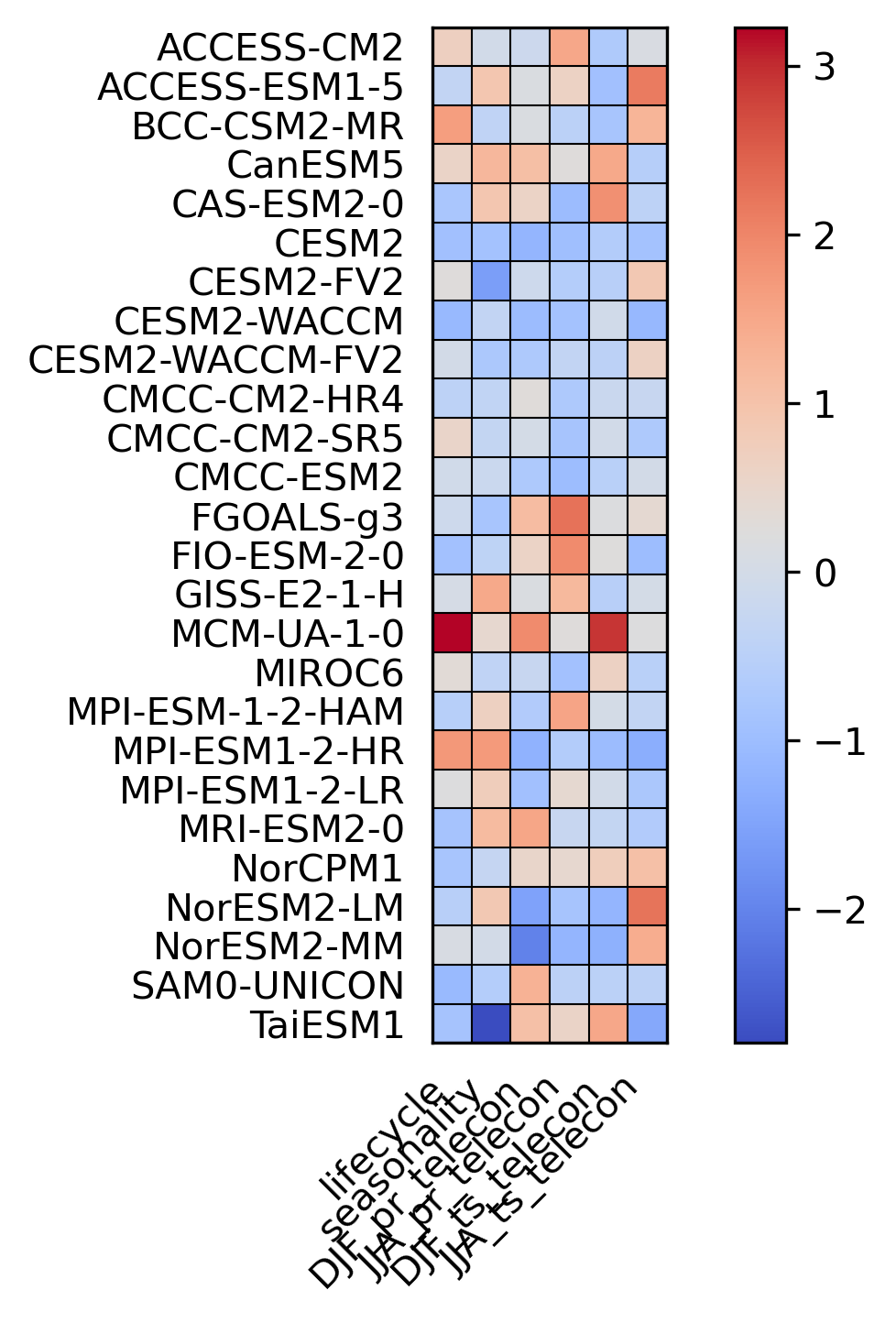

Fig. 371 Portrait plot of normalized metrics for models against reference observation.#
